Metal Stampings

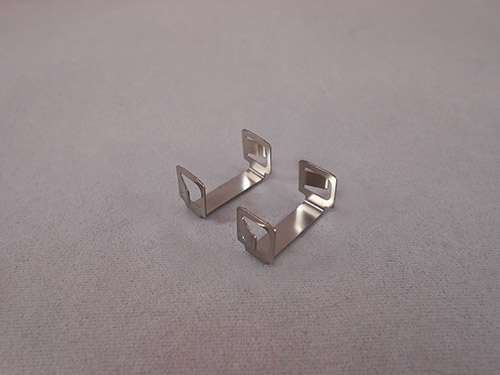

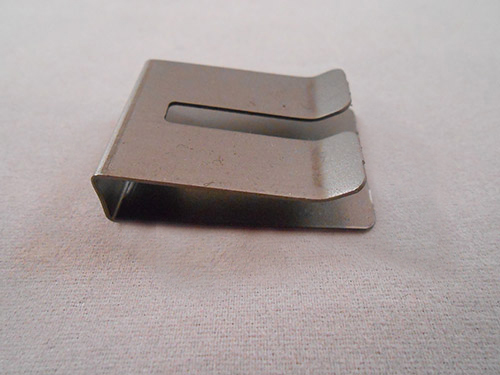

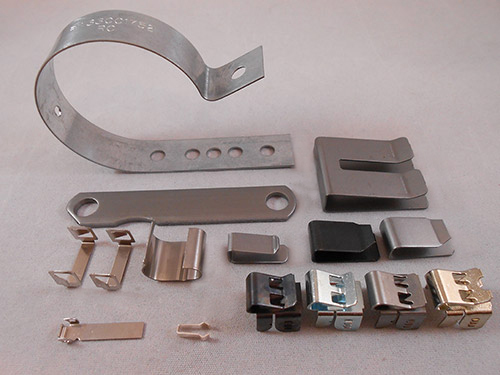

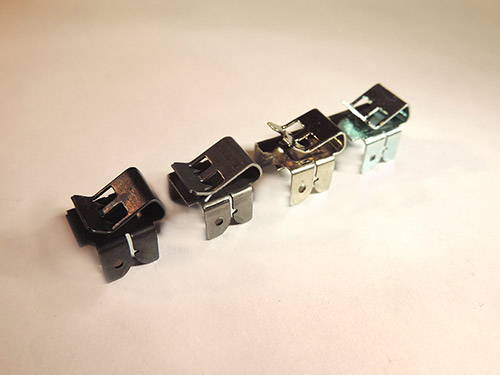

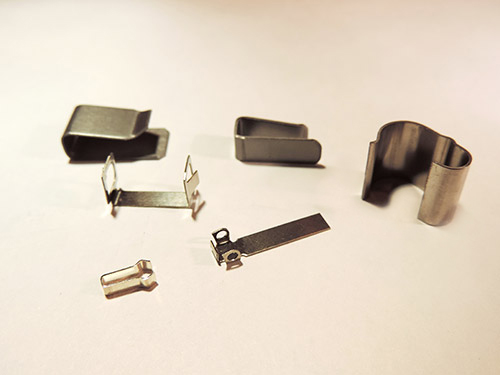

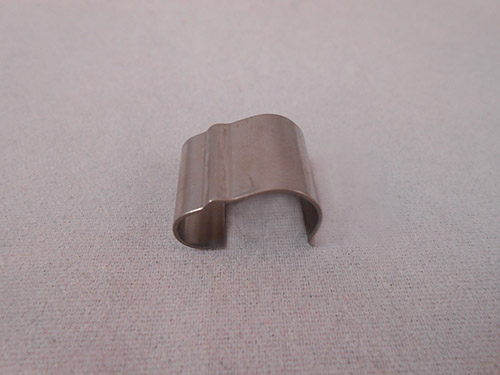

Metal Stampings are produced from a sheet metal forming process through the use of a punch press, stamping press or fourslide machine. Stampings come in a variety of shapes and sizes, from very intricate small sizes to much larger configurations.

Manufactured to tight tolerances and stringent quality control standards
Specializing in exotic materials and flat springs

Metal Stampings Capabilities

Specifications

Punch Press Capacity: 35 Ton

Four Slide Press Capacity: Up to 25 Ton Using US Multislides, Nilson and Baird Machinery

Materials

Materials

Copper
Brass
Aluminum
Nickel
Stainless Steel
Annealed Spring Steel
Cold Rolled Steel
Hard Drawn Wire
Music Wire

Sheet Material Thickness

.003" - .0625" thick
Up to 2.00" wide

Wire Diameter Capacity: .003" - .1875"

Capabilities

Additional Services

To insure that the final product is up to our standards, R.C. Coil Spring provides additional in-house services for its customers.

Bar Coding
CAD Design Capabilities
Color Coating
Spring End Grinding
Stress Relieving
Material and Part Certification
Packaging on Tacky Boards/Plastic Bags
PPAPs/First Articles Provided
Kanban
Statistical Process Controls
